Portal

class geodefi.Portal

Provides easy access to the public utility functions for the main smart contract of the staking infrastructure: Portal.

Class Attributes 

Portal.address

Returns the address of the contract.
geode.portal.address
# 0xB0334F08dEC465Ec180F1AF04C6D7d3737407083
Portal.version

Returns the current version of the contract.

Note

geodefi smart contracts has their own built-in version management system based on UUPS. This version should not be confused with smart contract’s proxy version, which increases by one on every update.
geode.portal.version
#96496677624318398099812318321560460756447703796250258508740352959269719433552

from geodefi.utils import to_bytes32, to_string

# read as a string:
version_name = geode.portal.functions.readBytes(self.version, to_bytes32("NAME")).call()

# convert from bytes to string:
to_string(version_name)
# v1_0
Portal.network

Returns the network of the contract as a geodefi.Network (strEnum) instance.
geode.portal.network
# <Network.holesky: 17000>

Functions 

# recommended for easier access:
portal = geode.portal
Note

On Portal and Token instances, contracts can be utilized with instance.contract.functions.name().call() . However, similarly can be accessed through: instance.functions.name().call() , which removes the useless contract in the middle.

Parameters 

Portal.GeodeParams()

governance : proposer part on the dual governance

senate : authority that approves the proposers

approvedUpgrade : special proposal that is approved by the senate. Contract can be upgraded to given instance afterwards.

senateExpiry : a senate can only function for 365 days max. Governance should propose a new senate before the circuit-breaker is activated.

packageType : portal’s package TYPE is 10001. Similarly, other packages such as withdrawal contract etc. also has ID_TYPE between 10000-19999.
portal.functions.GeodeParams().call()
# ['0x2C95BC18Fd9382a07776D416EeF6c2FEb3AD2A8C',
# '0x2C95BC18Fd9382a07776D416EeF6c2FEb3AD2A8C',
# '0x6699580E23Fc6a802e996a654845348CA560bc94',
# 1717847448,
# 10001]
Portal.StakeParams()

gETH : deployed token address

oraclePosition : geoscope oracle multisig address

validatorsIndex : current index of the validators, includes all states.

verificationIndex : verified validators, only increases as more validators are evaluated. Note that, not all evaluated validators are verified.

monopolyThreshold : given PERCENTAGE_DENOMINATOR = 100%, max amount of validators of a operator can be up to x% of the all validators on the beaconchain.

beaconDelayEntry : a validator proposal can be delayed up to x seconds (currently represents 14 days) by the operator.

beaconDelayExit : a validator exit request can be delayed up to x seconds (currently represents 14 days) by the operator.

initiationDeposit : Fixed amount that should be deposited to reserve a NAME while creating a staking pool (currently 32 eth).

oracleUpdateTimestamp : timestamp for the latest oracle update, which set new merkle roots.

dailyPriceIncreaseLimit : price of the token can decrease x% * elapsed_days at most.

dailyPriceDecreaseLimit : price of the token can increase x% * elapsed_days at most.
portal.functions.StakeParams().call()
# ['0xaA970005F693Ae459e0ee107c63b546E8ff51d5d',
# '0x7B6fA217a374826FCa50dccB87041AE0e34Ba1f5',
# 0,
# 0,
# 0,
# 1209600,
# 1209600,
# 32000000000000000000,
# 0,
# 700000000,
# 700000000]
Portal.getContractVersion()

Returns version of contract in integer.
portal.functions.getContractVersion().call()
# 87373968589722757255522487689903791119558634447171488905970002736659167479131

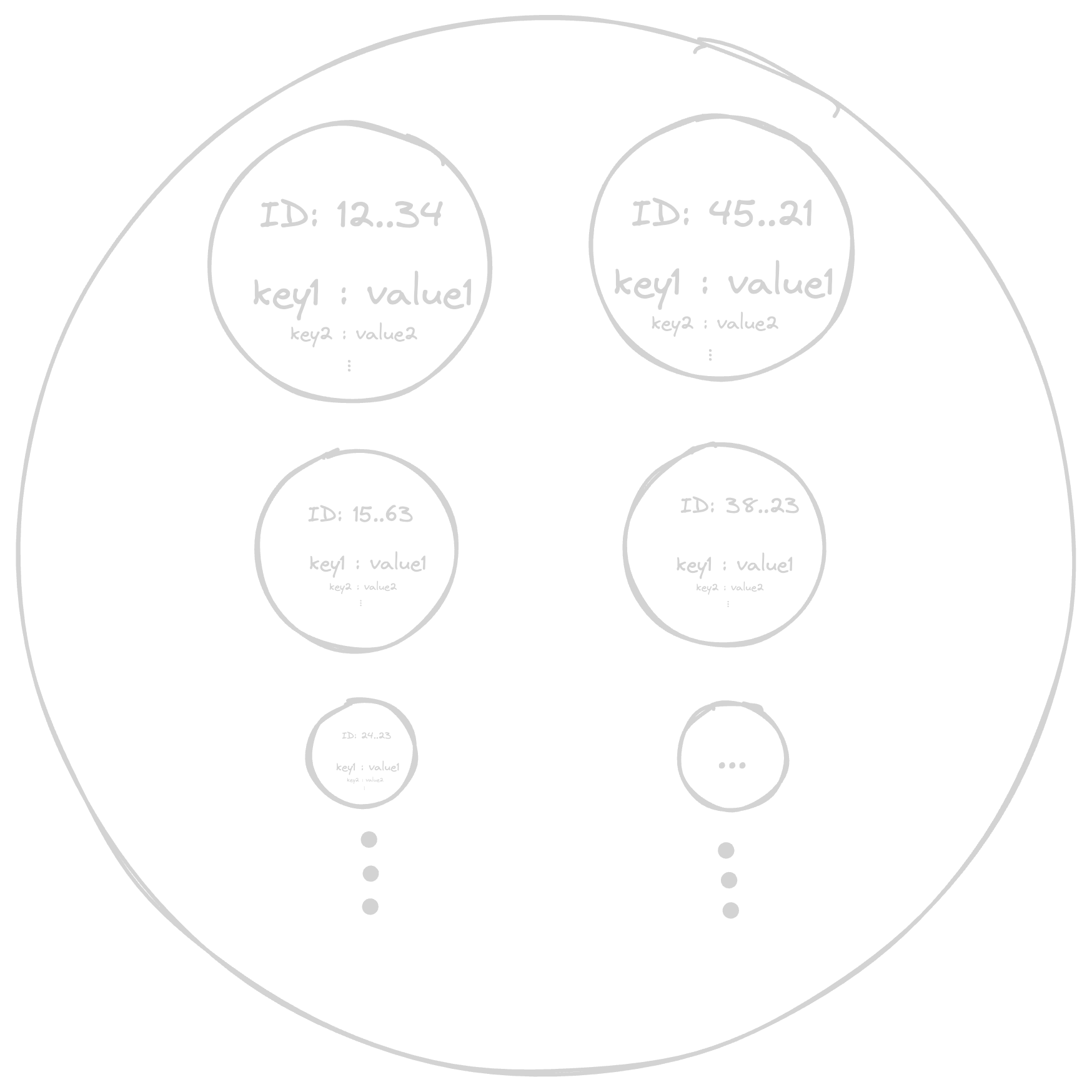

Isolated Storage 

DataStore is designed to host multiple parties of different TYPE entities, without them affecting each other’s storage space under any condition.

This is achieved by utilizing id and key pairs within the storage.

Note

DataStore can only store 3 types of variables: UINT256, Address, Bytes. Worth noting, DataStore not only can store these types, but can also store Arrays of these types and relational data between different IDs by generating a new key for the unqiue combinations.

Note

Do not forget to call the correct function according to the type of the variable you will return.

Warning

We recommend that you initialize the Pool, Operator or Validator and read the data that way, instead of calling it from the Portal directly. See Pools, Operators, Validators,

Portal.readBytes(id: uint256, key: bytes32)
from geodefi.utils import to_bytes32, to_string
pid = 29228457249232120346521013786824808088246537603535847808963148138747123868265

name = portal.functions.readBytes(pid, to_bytes32("NAME")).call()
# b'Icy Pool'

to_string(name)
# 'Icy Pool'
Portal.readAddress(id: uint256, key: bytes32)
from geodefi.utils import to_bytes32, to_string
pid = 29228457249232120346521013786824808088246537603535847808963148138747123868265

address = portal.functions.readAddress(pid, to_bytes32("CONTROLLER")).call()
# 0x2C95BC18Fd9382a07776D416EeF6c2FEb3AD2A8C
Portal.readUint(id: uint256, key: bytes32)
from geodefi.utils import to_bytes32, to_string
pid = 29228457249232120346521013786824808088246537603535847808963148138747123868265

address = portal.functions.readUint(pid, to_bytes32("fee")).call()
# 5e8 # equal to 5%

Arrays 

Note

If you want to get lenght of the array you can call readUint function with the same key like below function.
# length
portal.functions.readUint(pid, to_bytes32("middlewares")).call()
# 3

# index
portal.functions.readAddressArray(pid, to_bytes32("middlewares"), index).call()
# 0x2C95BC18Fd9382a07776D416EeF6c2FEb3AD2A8C
Portal.functions.readBytesArray(id: uint256, key: bytes32, index: uint256)

For getting array of bytes.

Portal.functions.readAddressArray(id: uint256, key: bytes32, index: uint256)

For getting array of address.

Portal.functions.readUintArray(id: uint256, key: bytes32, index: uint256)

For getting array of uint256.

List of all IDs 

Portal.functions.allIdsByType(type: uint256, index: uint256): Returns the id of specific type of given index.

from geodefi.globals import ID_TYPE

# Get Pools (ID_TYPE => 5)
portal.functions.allIdsByType(ID_TYPE.POOL,0).call()
# 29228457249232120346521013786824808088246537603535847808963148138747123868265
portal.functions.allIdsByType(5,0).call()
# 29228457249232120346521013786824808088246537603535847808963148138747123868265

portal.functions.allIdsByType(ID_TYPE.POOL,99).call()
# ContractLogicError

# Get Operators (ID_TYPE => 4)
portal.functions.allIdsByType(ID_TYPE.OPERATOR,0).call()
114391297015478800753082638170652680401082080549997516459063441314156612391510
portal.functions.allIdsByType(4,0).call()
114391297015478800753082638170652680401082080549997516459063441314156612391510

Portal.functions.allIdsByTypeLength(type: uint256): Returns the lenght of specific type of given index.

from geode.globals import ID_TYPE

# Get Pool IDs Length (ID_TYPE => 5)
portal.functions.allIdsByTypeLength(ID_TYPE.POOL).call()
# 13

# Get Operator IDs Length (ID_TYPE => 4)
portal.functions.allIdsByTypeLength(ID_TYPE.OPERATOR).call()
# 5

Generating IDs and KEYs 

Local (recommended)

Utilize utils functions:

from geode.utils import generate_id, get_key

id = generate_id("Some_Pool", 5)
# 76326158993240509638979169100046752960475693436338829808324780012712985408415

get_key(id, "array_name")
# HexBytes('0x1a4666a7056a1f68c5a72f124ff88dd31ad1576baf1633657754e387e30a2b2b')

Onchain 

Portal.functions.getKey(id: uint256, param: bytes32)

returns Bytes.
portal.functions.getKey(poolID, to_bytes32('CONTROLLER')).call()
# b'\xb4s\xca\xe0\xf2\xd9\xf2!*k\xfd$\xd9\xff\xcc\n\xf8\xcc7>\xae{=\x8f&\xb9\xbe\xc6_\x00^\xdf'
Portal.functions.generateId(name: string, type: uint256)

returns uint256.
portal.functions.generateId("Some_Pool", 5).call()
# 97770474815149397909782741678802560703260876453812799861980400297568557242506

Other View Functions for Pools, Operators and Validators 

Portal.functions.canStake(pubkey: bytes)

True if the validator of given pubkey passed the checks and is ready to stake, False otherwise.

## pubkey: bytes
portal.functions.canStake(pubkey).call()
True

Portal.functions.isMiddleware(_type: uint256, version: uint256)

True if list of middlewares for given type ID_TYPE (e.g MIDDLEWARE_GETH = 20011) has provided version set as a middleware on portal, that can be used while pool creation.

portal.functions.isMiddleware(ID_TYPE.MIDDLEWARE_GETH, 97770474815149397909782741678802560703260876453812799861980400297568557242506).call()
# False

Portal.functions.getPackageVersion(_type: uint256, version: uint256)

Returns the latest version for given ID_TYPE (e.g PACKAGE_WITHDRAWAL_CONTRACT = 10011) :

_v =portal.functions.getPackageVersion(ID_TYPE.PACKAGE_WITHDRAWAL_CONTRACT).call()
# 97770474815149397909782741678802560703260876453812799861980400297568557242506

# get version's name as a string:
_v_name = portal.functions.readBytes(_v, to_bytes32("NAME")).call()

# convert from bytes to string:
to_string(_v_name)

Portal.functions.isPrisoned(operatorId: uint256)

True if the operator of given id has prisoned, False otherwise.

portal.functions.isPrisoned(operatorId).call()
# False

Portal.functions.isPriceValid(poolId: uint256)

True if the pool of given id has valid price, False otherwise.

portal.functions.isPriceValid(poolId).call()
# True

Portal.functions.isMintingAllowed(poolId: uint256)

True if the pool of given id allows minting, False otherwise.

portal.functions.isMintingAllowed(poolId).call()
# True

Portal.functions.isPrivatePool(poolId: uint256): True if the pool of given id is private pool, False otherwise.

Portal.functions.isWhitelisted(poolId: uint256, account: address): True if the given address is whitelisted in given private pool.

False if not whitelised or if the pool is public.

Portal.functions.getInfrastructureFee(_type: uint256): infrastructureFee as a percentage with respect to PERCENTAGE_DENOMINATOR for given package type.

Portal.functions.getMaintenanceFee(id: uint256)

MaintainanceFee as a percentage with respect to PERCENTAGE_DENOMINATOR. id can be operator or pool.

portal.functions.getMaintenanceFee(operatorId).call()
# 500000000
# 500000000 / 1e10 = 0.05 %

Portal.functions.getValidator(pubkey: bytes)

Returns the Validator by given pubkey.

state
index
createdAt
period
poolId
operatorId
poolFee
operatorFee
infrastructureFee
signature31

# Optionally both hexstring or bytes works.
# Hex-string
pubkey = 0x9326f6c07f8abd082ef82b19279cbba7616b0395fb947d50cd2d5fef303dd613abe31087077a67faa477c0631cc7228d
# Hex-to-bytes
bytes.fromhex('9326f6c07f8abd082ef82b19279cbba7616b0395fb947d50cd2d5fef303dd613abe31087077a67faa477c0631cc7228d')
# b'\x93&\xf6\xc0\x7f\x8a\xbd\x08.\xf8+\x19\'\x9c\xbb\xa7ak\x03\x95\xfb\x94}P\xcd-_\xef0=\xd6\x13\xab\xe3\x10\x87\x07zg\xfa\xa4w\xc0c\x1c\xc7"\x8d'

# Bytes
pubkey =  b'\x93&\xf6\xc0\x7f\x8a\xbd\x08.\xf8+\x19\'\x9c\xbb\xa7ak\x03\x95\xfb\x94}P\xcd-_\xef0=\xd6\x13\xab\xe3\x10\x87\x07zg\xfa\xa4w\xc0c\x1c\xc7"\x8d'
# Bytes-to-hex
pubkey.hex()
# 0x9326f6c07f8abd082ef82b19279cbba7616b0395fb947d50cd2d5fef303dd613abe31087077a67faa477c0631cc7228d

portal.functions.getValidator(pubkey).call()

Portal.functions.getValidatorByPool(poolID: uint256, index: uint256)

Returns the Validator of pool that corresponding index:

state
index
createdAt
period
poolId
operatorId
poolFee
operatorFee
infrastructureFee
signature31

# Optionally both hexstring or bytes works.
# Hex-string
pubkey = 0x9326f6c07f8abd082ef82b19279cbba7616b0395fb947d50cd2d5fef303dd613abe31087077a67faa477c0631cc7228d
# Hex-to-bytes
bytes.fromhex('9326f6c07f8abd082ef82b19279cbba7616b0395fb947d50cd2d5fef303dd613abe31087077a67faa477c0631cc7228d')
# b'\x93&\xf6\xc0\x7f\x8a\xbd\x08.\xf8+\x19\'\x9c\xbb\xa7ak\x03\x95\xfb\x94}P\xcd-_\xef0=\xd6\x13\xab\xe3\x10\x87\x07zg\xfa\xa4w\xc0c\x1c\xc7"\x8d'

# Bytes
pubkey =  b'\x93&\xf6\xc0\x7f\x8a\xbd\x08.\xf8+\x19\'\x9c\xbb\xa7ak\x03\x95\xfb\x94}P\xcd-_\xef0=\xd6\x13\xab\xe3\x10\x87\x07zg\xfa\xa4w\xc0c\x1c\xc7"\x8d'
# Bytes-to-hex
pubkey.hex()
# 0x9326f6c07f8abd082ef82b19279cbba7616b0395fb947d50cd2d5fef303dd613abe31087077a67faa477c0631cc7228d

portal.functions.getValidatorByPool(poolId, 1).call()
